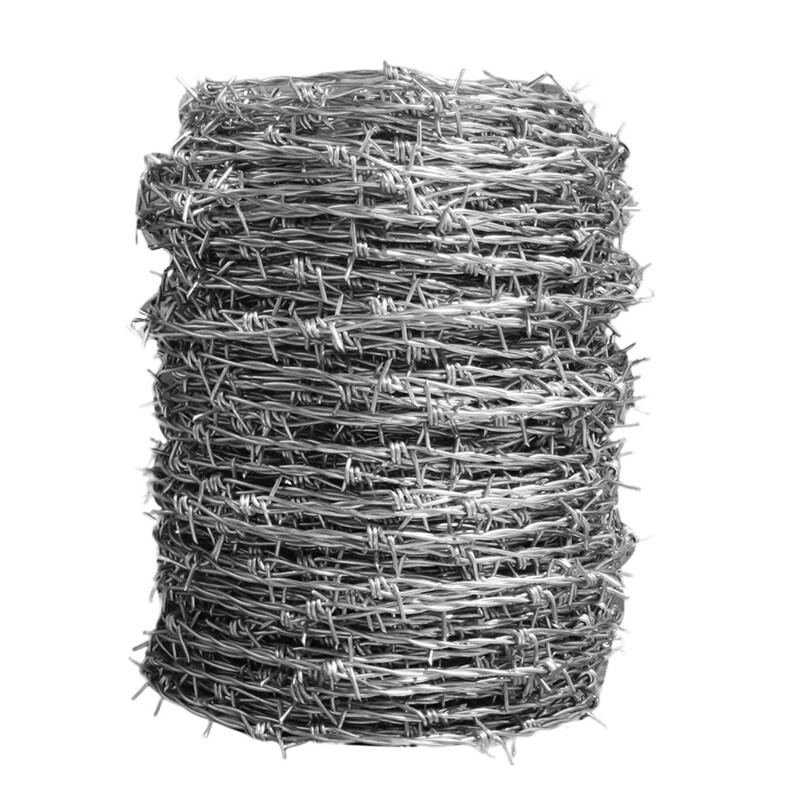

​Barbed Wire

​Barbed Wire

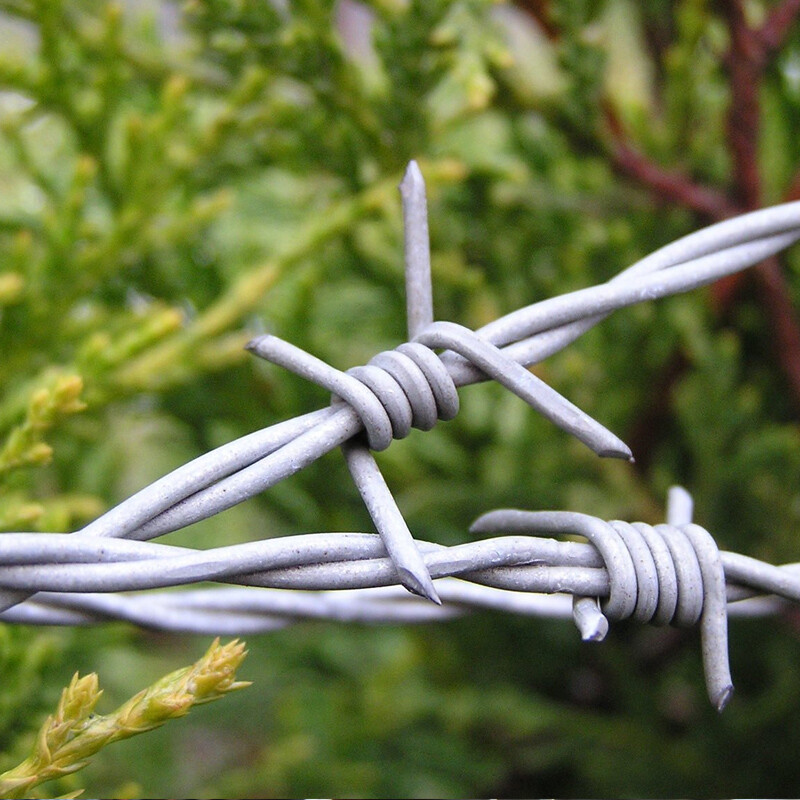

​Barbed wire is twisted and braided by a fully automated barbed wire machine. It is commonly known as thorn barb, barbed wire, and barbed wire.
Features: simple structure, easy installation, beautiful and practical.
Raw materials: high-quality low-carbon steel wire. Surface treatment process: electrogalvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. Available in blue, green, yellow and other colors.

// Product  Description //

Barbed wire is twisted and braided by a fully automated barbed wire machine. It is commonly known as thorn barb, barbed wire, and barbed wire.


Features: simple structure, easy installation, beautiful and practical.


Raw materials: high-quality low-carbon steel wire. Surface treatment process: electrogalvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. Available in blue, green, yellow and other colors.

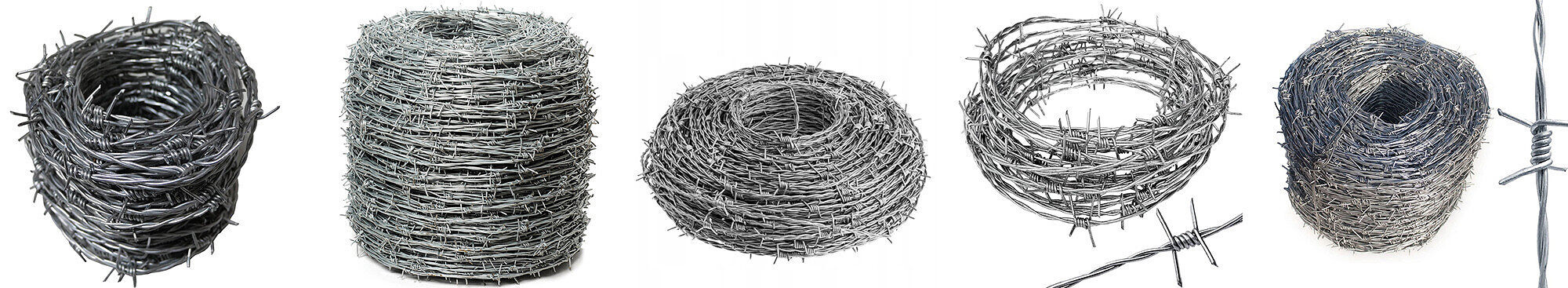

Barbed Wire.jpg

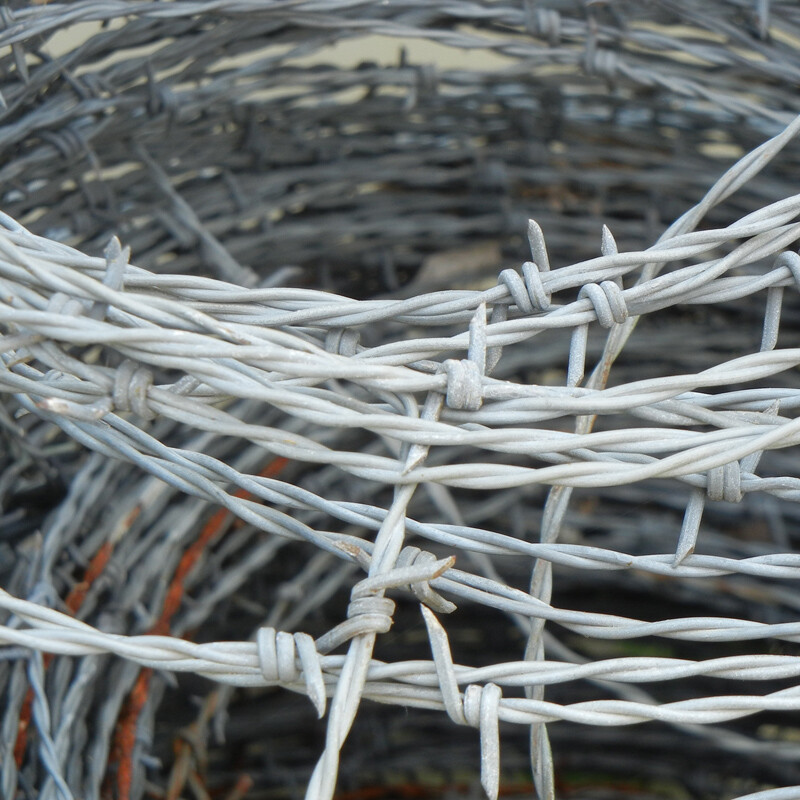

Three twisting methods of barbed wire: forward twisting, reverse twisting, and forward and reverse twisting.

Forward twisting method: twist two or more iron wires into a double-strand iron wire rope and then wrap the barbed wire around the double-strand iron wire.

Reverse twisting method: first wrap the barbed wire around the main wire (that is, a single iron wire) and then add another iron wire to twist and braid it into a double-strand barbed wire.

Forward and reverse twisting method: twist and braid in the opposite direction from where the barbed wire is wrapped around the main iron wire. It is not twisted in one direction.

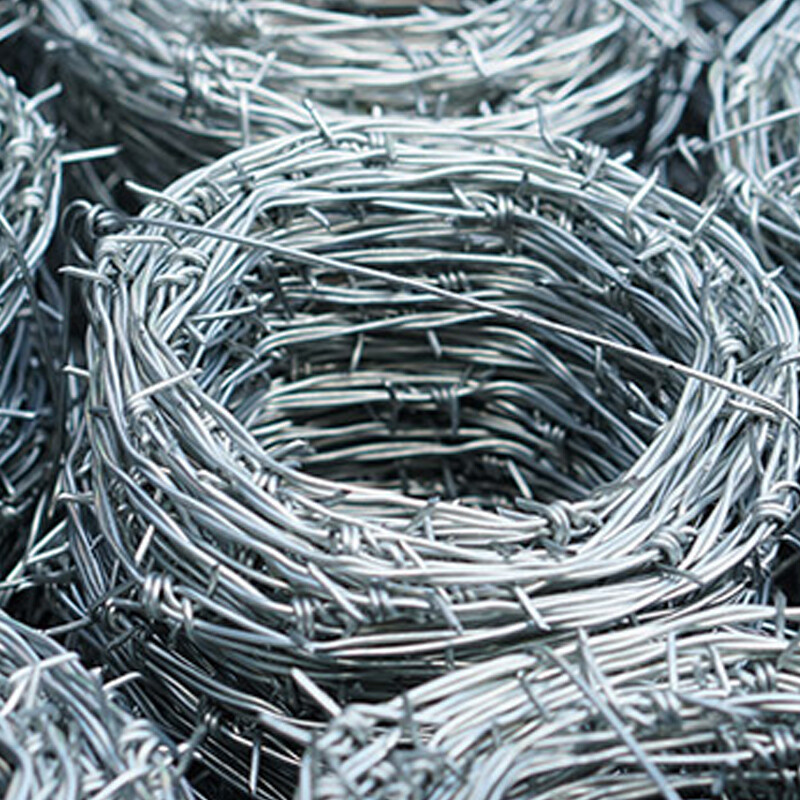

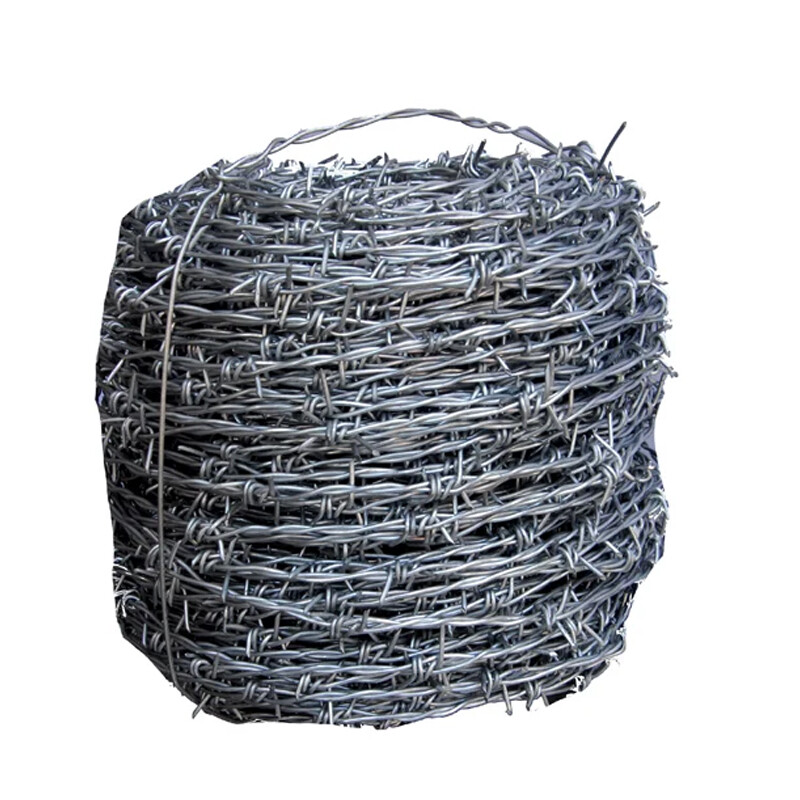

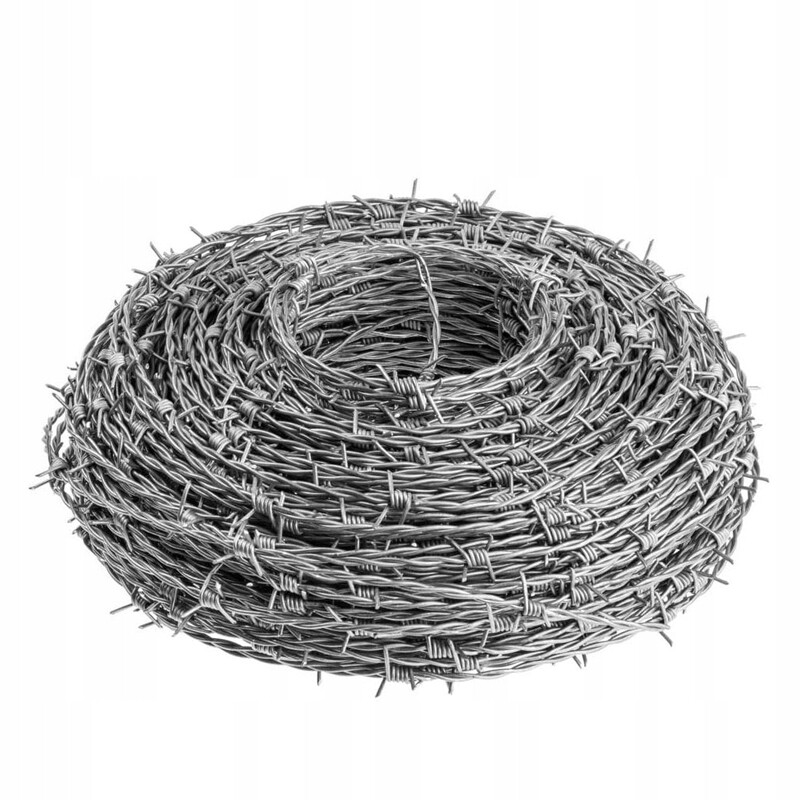

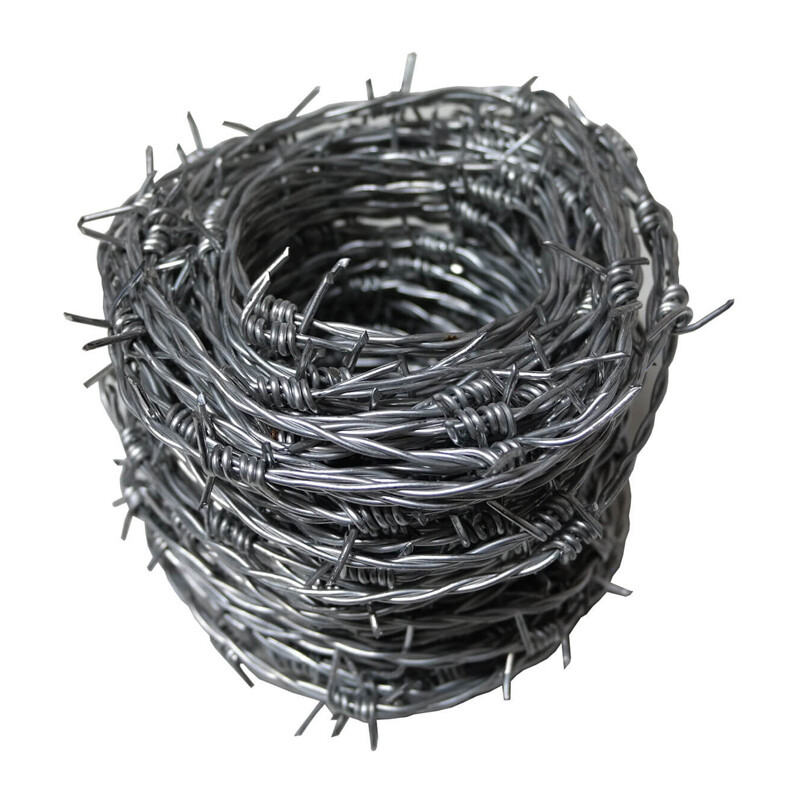

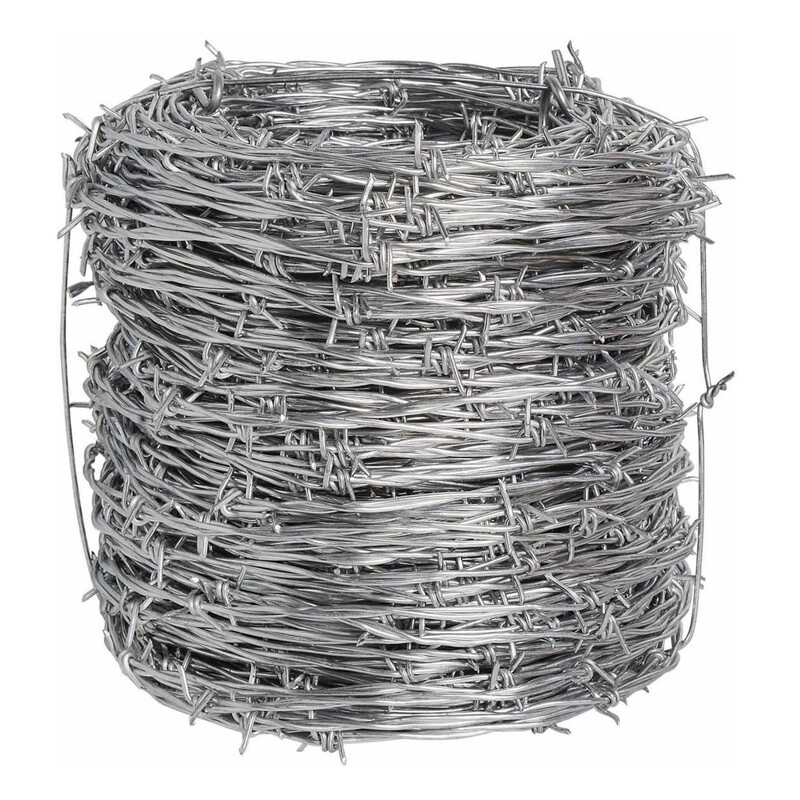

Packaging: Reel, net weight 25kg or 50kg per reel, wrapped with PVC tape.


Application: Widely used in isolation and protection nets for industry, agriculture, animal husbandry, grassland boundaries, railways, highways, and forest protection, etc.


Specifications of Barbed Wire
Gauge of
Strand and Barb in B.W.G.
Approximate Length per kilogram in Meter
Barbs Spacing 3"Barbs Spacing 4"Barbs Spacing 5"Barbs Spacing 6"
12 x126.06176.75907.27007.6376
12 x147.33357.90518.30158.5741
12-1/2 x 12-1/26.92237.71908.30228.7221
12-1/2 x 148.10968.8149.22429.5620
13 x137.98088.8999.572110.0553
13 x148.84489.689910.292310.7146
13-1/2 x149.607910.613411.470511.8553
14 x1410.456911.659012.542313.1752
14-1/2 x14-1/211.987513.367114.378115.1034
15 x1513.892715.494216.666617.5070
15-1/2 x15-1/215.349117.114418.406019.3386
Barbed Wire Specification
TypeWire Gauge (SWG)Barb Distance (cm)Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire10# x 12#7.5-151.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wirebefore coatingafter coating7.5-151.5-3
1.0mm-3.5mm1.4mm-4.0mm
BWG11#-20#BWG8#-17#
SWG11#-20#SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
