Features:

Excellent protection performance, almost impossible to climb.

High-strength steel wire is difficult to cut.

The strong safety fence barrier is neat and beautiful.

It is very simple to install and can be quickly formed.

Good deterrent effect.

Anti-corrosion, anti-aging, anti-sun, weather-resistant, etc.

Processing technology:

The steel plate (blade plate) is stamped and formed into a package attached to the hot-dip galvanized steel wire (core wire). It is composed of sharp-angled galvanized steel plate or stainless steel sheet as the blade and high-tension steel wire as the core wire.

Material:

Core wire material: high-quality hot-dip galvanized high-carbon steel wire, hot-dip galvanized medium-carbon steel wire, stainless steel plate wire, etc.

Blade plate material: high-quality hot-dip galvanized steel plate and stainless steel plate.

Main categories:

Blade barbed wire fences can be divided into (accordion-type) spiral blade barbed wire fences, linear blade barbed wire fences, flat blade barbed wire fences, etc. according to different installation methods.

Function/function:

Blade barbed wire is a new type of protective net. The product has excellent characteristics such as beautiful appearance, economic use, good barrier effect, and convenient construction. It is mainly used for industrial and mining enterprises, gardens, border posts, prisons and other confinement protection.

Blade Type	Drawings	Barb Thickness (mm)	Barb Length (mm)	Barb Width (mm)	Barb Spacing (mm)	Core Wire Diameter (mm)
CBT-60		0.5 ± 0.05	60.0 ± 2	31 ± 1	100 ± 2	2.5 ± 0.1

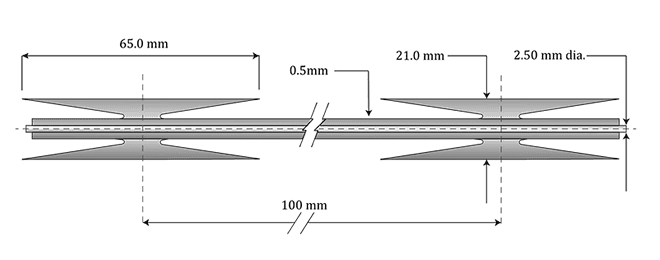

CBT-65		0.5 ± 0.05	65 ± 2	21 ± 1	100 ± 2	2.5 ± 0.1

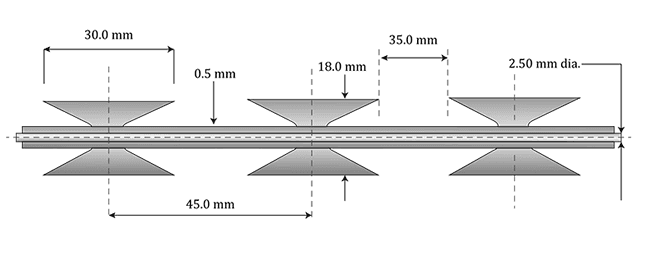

BTO-30		0.5 ± 0.05	30 ± 1	18 ± 1	45 ± 2	2.5 ± 0.1

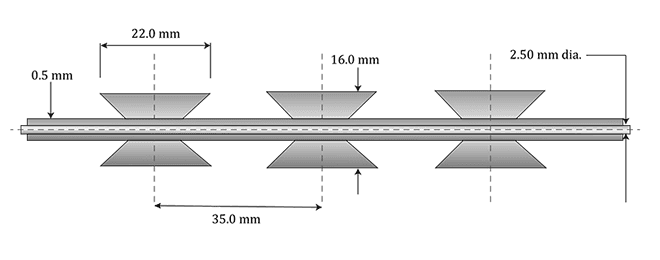

BTO-22		0.5 ± 0.05	22 ± 1	16 ± 1	35 ± 1	2.5 ± 0.1

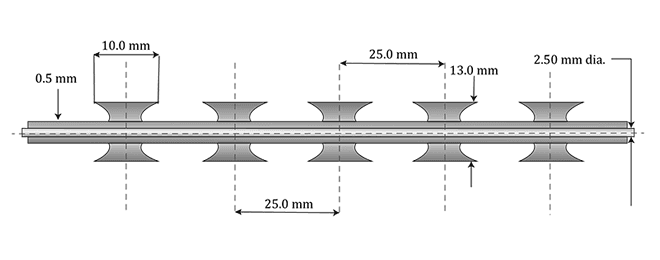

BTO-10		0.5 ± 0.05	10 ± 1	13 ± 1	25 ± 1	2.5 ± 0.1

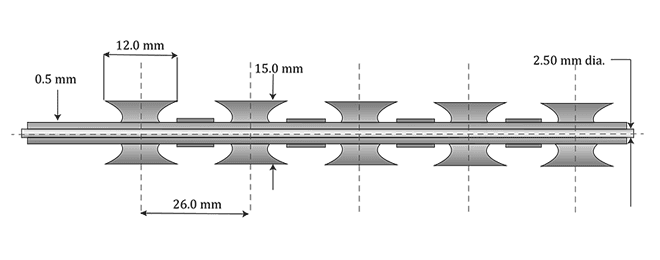

BTO-12		0.5 ± 0.05	12 ± 1	15 ± 1	26 ± 1	2.5 ± 0.1

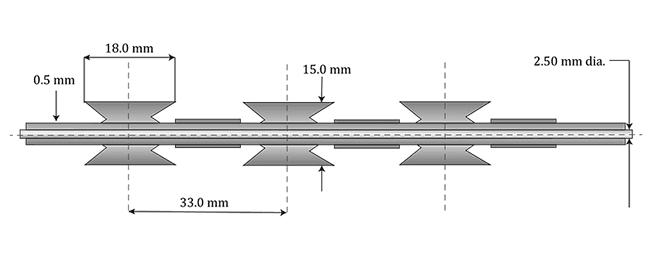

BTO-18		0.5 ± 0.05	18 ± 1	15 ± 1	33 ± 1	2.5 ± 0.1
BTO-28		0.5 ± 0.05	28 ± 1	15 ± 1	45 ± 1	2.5 ± 0.1

Coil Loop Specifications
